Pile Foundation Design in Fargo: Deep Foundations for Expansive...

Q: What does a pile foundation design for a Fargo residential addition cost?

The spread depends on the number of borings, laboratory testing required (consolidation, triaxial, Atterberg limits), and whether a static load test is included in the scope.

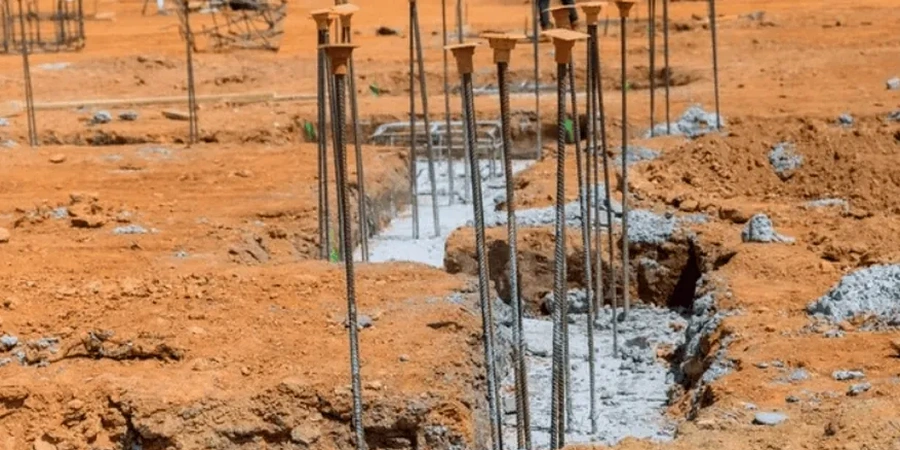

The soil profile beneath a lot in the Hawthorne neighborhood bears almost no resemblance to what you find two miles south in Osgood. Hawthorne sits on thicker, stiffer glacial till, while Osgood deals with deeper deposits of plastic Lake Agassiz clay. That difference dictates everything about deep foundation design in Fargo. A shallow footing that performs well on the till can experience 75 mm of differential heave in the clay belt if the moisture content shifts across a freeze-thaw cycle. We specify pile foundations that transfer structural loads below the active zone, typically to a depth of 10 to 14 meters, using parameters derived from SPT drilling and laboratory consolidation tests. The design accounts for downdrag forces, lateral squeeze, and the long-term equilibrium water content that governs volume change in these high-plasticity soils.

Fargo's Lake Agassiz clays can develop swell pressures over 200 kPa. A properly designed pile foundation bypasses the active zone entirely.

Our service areas

How we work

The Red River Valley presents a geotechnical paradox: saturated, soft clay in spring and desiccated, fissured clay by late August. A pile installed in October will experience shaft adhesion conditions that are fundamentally different from those in April. Our design methodology addresses this seasonal swing head-on. We run drained and undrained triaxial tests on undisturbed Shelby tube samples to bracket the effective stress envelope, then apply the alpha method for shaft resistance in fine-grained soils per FHWA-NHI-05-042. For driven H-piles, we rely on wave equation analysis with CAPWAP signal matching during restrike to confirm setup after pore pressure dissipation. Drilled shafts with belled bases are common in Fargo where the clay extends beyond 15 meters; the bell doubles end-bearing area without requiring a larger shaft diameter through the expansive zone. We specify a minimum 150 mm void form beneath grade beams in all pile-supported structures to isolate the slab from swelling pressures that can exceed 200 kPa.

Pile Foundation Design in Fargo: Deep Foundations for Expansive Clay Soils — Technical reference — Fargo

Local ground factors

Downtown Fargo expanded rapidly after the 1957 tornado, and many commercial buildings from that era now show the consequences of grade-supported construction on expansive clay: cracked slabs, sticking doors, and tilted columns. The geotechnical risk in these redevelopment projects is twofold. First, existing fill and buried foundation remnants create obstructions that make driven pile installation unpredictable without pre-drilling. Second, lowering the groundwater table during construction can accelerate consolidation settlement beneath adjacent structures. We mitigate this with pre-construction test pits at column locations and vibrating wire piezometers to monitor pore pressure throughout the excavation phase. A pile design that ignores lateral squeeze from swelling clay can impose bending moments high enough to crack a reinforced concrete shaft. Our standard practice includes a minimum 1% longitudinal steel ratio through the active zone and a free-head lateral deflection analysis under a service-level swell pressure of 150 kPa.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.org

Relevant standards

IBC 2018, Chapter 18 – Soils and Foundations, ASTM D1586-18 – Standard Test Method for Standard Penetration Test (SPT), ASTM D1143/D1143M-20 – Standard Test Methods for Deep Foundation Elements Under Static Axial Compressive Load, FHWA-NHI-05-042 – Design and Construction of Driven Pile Foundations, ACI 543R-12 – Guide to Design, Manufacture, and Installation of Concrete Piles

Technical data

Parameter	Typical value
Pile type	Driven H-pile (HP 12x53) / Drilled shaft with bell
Typical embedment depth	10–15 m below grade (below active zone)
Design standard	IBC 2018, Chapter 18; ACI 543R-12
Shaft resistance method	Alpha method (FHWA-NHI-05-042) for fine-grained soils
End bearing	Nq factor from Berezantzev (driven) or Reese & O'Neill (drilled)
Downdrag consideration	Neutral plane analysis with 75% of undrained shear strength
Lateral capacity	LPILE analysis; P-y curves for soft clay (Matlock)
Pile load test	ASTM D1143 static compression test; restrike CAPWAP

Frequently asked questions

How deep do piles need to go in Fargo to bypass expansive clay?

The active zone in Fargo typically extends to 3–4 meters below grade, but we design pile tips to reach depths of 10–15 meters. This ensures the load is transferred to a stable stratum below the depth of seasonal moisture fluctuation. The exact depth depends on SPT blow counts and consolidation test results from the specific site.

What does a pile foundation design for a Fargo residential addition cost?

Can you reuse existing piles from a demolished structure?

Sometimes, but it requires careful investigation. We expose the pile cap, extract concrete cores for compressive strength, and run a low-strain pile integrity test (ASTM D5882) to check for cracks or necking. The original pile must be analyzed using current IBC 2018 seismic provisions, which are more stringent than many older codes. If the capacity is insufficient, we design supplementary piles.
