Electrical Resistivity / VES Surveys for Subsurface Characterization in Fargo

Practical geotechnics, field-tested.

LEARN MORE

Fargo's built environment sits squarely on the lacustrine clays and silts of glacial Lake Agassiz — a flat, featureless plain that masks a surprisingly complex stratigraphy beneath the surface. The city's expansion into West Fargo and the revitalization along the Red River corridor has pushed site investigations beyond what a conventional grid of borings can efficiently resolve. We started integrating electrical resistivity tomography and vertical electrical sounding (VES) into our workflow back when the Sanford Medical Center expansion demanded continuous profiles between widely spaced geotechnical boreholes. The clay here — that infamous Lake Agassiz fat clay — holds a resistivity signature between 5 and 20 ohm-m when saturated, and that's a gift for anyone running a Schlumberger array across a 200-meter spread. It means you can trace clay thickness, pinpoint sand lenses that'd be missed by a 50-foot boring spacing, and map the water table without digging a single test pit. Over in the Oxbow neighborhood, where fine sands interfinger with the clays, we've seen VES pick up a 3-meter sand channel at 12 meters depth that three SPT borings in a 30-meter triangle completely walked past. That's the power of a continuous geoelectric section in this geology.

In Lake Agassiz clays, a resistivity inversion doesn't just suggest stratigraphy — it maps the water table, the sand lenses, and the clay thickness in a single continuous profile.

Our service areas

How we work

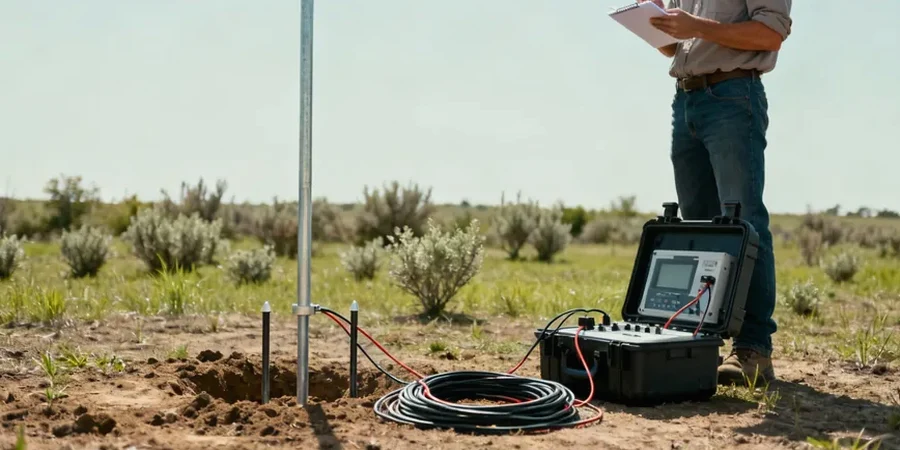

We were called out to a site near Hector International Airport where the developer had conflicting boring logs — one showed stiff clay at 8 meters, another hit saturated sand at the same elevation just 25 meters away. Running a VES spread with a maximum AB/2 of 150 meters gave us the full picture in about three hours of field time. The inverted resistivity section showed a clear low-resistivity clay basin pinching out against a higher-resistivity sand body, exactly where the two borings sat on opposite sides of the contact. That kind of lateral resolution is why we pair resistivity with CPT testing on Fargo projects where foundation type hinges on whether you're bearing on clay or punching through to the granular layer. The method works because Fargo's groundwater — typically within 2 to 4 meters of grade — creates a strong resistivity contrast between saturated and unsaturated zones. Our field setup uses a multi-electrode system with 72 electrodes, layered in Wenner and dipole-dipole arrays depending on whether we're chasing vertical resolution for footing depths or lateral continuity for pipeline alignments. Every survey gets tied to a local boring for calibration, and we invert with solid L1-norm constraints to handle the electrically noisy environments near buried utilities along 13th Avenue South.
Electrical Resistivity / VES Surveys for Subsurface Characterization in Fargo
Technical reference — Fargo

Local ground factors

The most common mistake we see with Fargo projects is treating resistivity as a stand-alone investigation tool without ground-truth calibration. A contractor will run a VES line, invert the data, and confidently drill a footing into what the resistivity section calls 'competent sand' — only to find 4 meters of soft, high-plasticity clay that gave an anomalously high resistivity because it was partially desiccated near an old riverbank. Resistivity responds to pore fluid chemistry, not just grain size. We've seen sulfate-rich groundwater in south Fargo produce clay resistivity values that mimic dry sand, and without a single calibration boring to anchor the interpretation, you're guessing. Another pattern: running a survey too close to buried steel utilities along University Drive without accounting for the conductive metal mass that distorts the current flow lines. We always require a utility locate and a 5-meter buffer from known metallic lines. The ASTM D6431 standard for resistivity imaging gives the framework, but in Fargo's layered glacial deposits, the practical interpretation demands someone who's inverted hundreds of these sections and knows when a resistivity anomaly is geology versus an artifact of the array geometry.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.org

Relevant standards

ASTM D6431-18, ASCE 7-22 (geophysical site characterization references), ASTM D420-18 (site reconnaissance integration)

Technical data

ParameterTypical value
Typical array configurationsSchlumberger, Wenner, dipole-dipole
Maximum investigation depth (AB/2 = 150 m)Approximately 45–50 meters
Data points per VES sounding25–35 apparent resistivity measurements
Clay resistivity range (saturated Lake Agassiz)5–20 ohm-m
Sand/silt resistivity range (unsaturated)50–200+ ohm-m
Electrode array length (2D tomography)Up to 360 meters (72 electrodes @ 5 m spacing)
Inversion software and algorithmRes2DInv with solid L1-norm constraints
Calibration requirementMinimum one borehole per survey line for ground-truth

Frequently asked questions

How deep can a VES survey investigate in Fargo's clay soils?

With a maximum current electrode spacing (AB/2) of 150 to 200 meters, we typically achieve investigation depths of 45 to 60 meters in the Lake Agassiz sediments. The actual depth penetration depends on the resistivity contrast between layers; the highly conductive saturated clays at 5–20 ohm-m limit current penetration compared to drier sands, so we adjust the maximum spread based on the target depth and the expected stratigraphy from nearby boring logs.

What is the typical cost range for a resistivity survey in Fargo?
How do you calibrate resistivity results to actual soil conditions?
Can resistivity surveys work when the ground is frozen in winter?

Frozen ground presents a challenge because ice has very high resistivity and blocks current injection at the surface electrodes. In Fargo's winter conditions, we either schedule surveys between April and November when the active layer is thawed, or we use salt-water solutions around the electrode stakes to improve galvanic contact if a winter survey is unavoidable. The frozen crust — typically 1 to 1.5 meters deep in January — creates a high-resistivity surface layer that complicates the inversion, so we prefer to wait for thawed conditions whenever the project schedule allows.
