Q: What soil types in Fargo are suitable for vibrocompaction?

Vibrocompaction works best in granular soils with less than 18 percent fines passing the No. 200 sieve for dry bottom-feed methods, and up to 25 percent for wet top-feed. Fargo's Lake Agassiz deposits are predominantly fine sands and silty sands, which fall within this envelope across most of Cass County. Sites with clay lenses thicker than 2 feet require hybrid approaches like stone columns instead.

Q: How long does a vibrocompaction treatment take for a typical Fargo commercial lot?

For a 30,000-square-foot commercial pad with treatment to 25 feet depth on an 8-foot triangular grid, plan on 5 to 7 working days for the vibrator operation plus 2 days for post-treatment SPT or CPT verification. Fargo's seasonal groundwater — often within 8 feet of surface in spring — affects jetting efficiency, so spring projects may add a day.

Q: What does vibrocompaction design cost in Fargo?

Design and quality control fees for a typical Fargo vibrocompaction project range from US$1,380 to US$5,500 depending on the treated area, depth, and number of verification borings required. Mobilization, vibrator rental, and backfill material are separate contractor costs.

Q: How do you verify that the compaction met the design target?

We run SPT borings per ASTM D1586 or CPT soundings per ASTM D5778 at grid center points, typically 8 to 12 feet on center, and compare pre- and post-treatment N-values or tip resistances. A minimum relative density of 70 percent is our standard acceptance criterion, and we provide a signed report with all raw blow count logs and corrected N60 values.

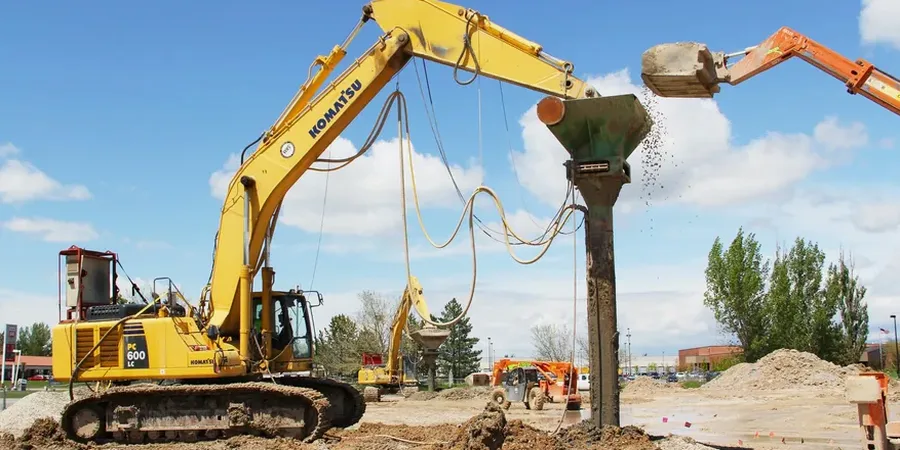

The vibroflot is a heavy cylindrical probe, typically 12 to 18 inches in diameter, powered by an electric or hydraulic motor spinning an eccentric weight at 1800 to 3600 rpm. When lowered into Fargo’s glacial lake sediments, the vibrator rearranges loose sand and silt grains into a denser configuration, assisted by water jets or compressed air. Our lab team tracks real-time ammeter readings and backfill consumption logs during each penetration and withdrawal step. In Fargo, where the Red River Valley alluvium can exhibit SPT N-values below 10 in the upper 20 feet, a CPT test run before design gives us a continuous profile of tip resistance and sleeve friction, essential for setting vibrator spacing and energy input. We cross-reference these profiles with grain-size curves from grain-size analysis to verify the soil falls within the compactable range — typically less than 18 percent passing the No. 200 sieve for dry bottom-feed methods.

Achieving 75 percent relative density in Fargo's silty fine sands often demands tighter probe spacing than standard charts predict, but real-time ammeter feedback lets us dial it in.

Our service areas

Slopes & Walls

Slope stability analysis ›Active/passive anchor design ›Retaining wall design ›

VIEW ALL SLOPES & WALLS ›

Underground Excavations

Geotechnical analysis for soft soil tunnels ›Geotechnical design of deep excavations ›Geotechnical excavation monitoring ›

VIEW ALL UNDERGROUND EXCAVATIONS ›

Roadway

Flexible pavement design ›Rigid pavement design ›CBR study for road design ›

VIEW ALL ROADWAY ›

Methodology and scope

One thing you learn quickly working Fargo ground is that the moisture content in the spring can be 10 to 15 percent higher than late summer, and that changes how the vibratory energy transmits through the soil. We compensate by adjusting water pressure on the jetting system and sometimes switching to a top-feed approach when the fines content edges above 12 percent. Our design process follows ASTM D6066-11 for evaluating relative density improvement and FHWA Geotechnical Engineering Circular No. 13 for liquefaction mitigation targets. A typical Fargo commercial site, say near 45th Street South or Davies High School area, requires post-compaction verification via SPT or cone testing on a grid pattern — usually 8 to 12 feet on center — to confirm relative density exceeds 70 percent. We also run Proctor and Atterberg tests on composite samples from each lift to document the shift in maximum dry density. The result is a uniform density profile that limits total settlement under footing loads to less than 1 inch for spread footings designed at 3,000 psf bearing pressure.

Vibrocompaction Design in Fargo ND — Deep Compaction for Loose Sands and Silts — Technical reference — Fargo

Local considerations

Fargo's winter freeze-thaw cycles penetrate 4 to 6 feet into the ground, and when the spring thaw arrives, the upper silts can temporarily lose their matric suction and collapse under even moderate footing loads. The big risk is differential settlement beneath slab-on-grade foundations in warehouse and light industrial buildings, where a 1-inch differential over 30 feet can crack tilt-up panels. Vibrocompaction design addresses this by extending the treatment zone at least 5 feet below the deepest frost-susceptible layer. We also factor in the Red River's historical flood levels — the 2009 crest reached 40.84 feet — and design the compaction grid to remain stable under buoyant conditions. Without deep densification, loose alluvial sands in the Sheyenne River delta area can settle 3 to 5 inches under 2,000 psf loads within the first five years of service.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.org

Applicable standards

ASTM D6066-11 Standard Practice for Determining the Normalized Penetration Resistance of Sands for Evaluation of Liquefaction Potential, FHWA Geotechnical Engineering Circular No. 13 — Ground Modification Methods, ASTM D1586-18 Standard Test Method for Standard Penetration Test (SPT), ASTM D2487-17 Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System)

Technical parameters

Parameter	Typical value
Probe diameter	12 to 18 in (305 to 457 mm)
Vibration frequency	30 to 60 Hz
Effective depth range	15 to 100 ft (4.5 to 30 m)
Target relative density (Dr)	70 to 85%
Post-compaction SPT N-value target	20 to 30 blows/ft
Grid spacing (typical)	6 to 12 ft (1.8 to 3.6 m)
Applicable grain size envelope	Fines < 18% (dry method), < 25% (wet method)
Verification method	SPT (ASTM D1586) or CPT (ASTM D5778)

Frequently asked questions

What soil types in Fargo are suitable for vibrocompaction?

Vibrocompaction works best in granular soils with less than 18 percent fines passing the No. 200 sieve for dry bottom-feed methods, and up to 25 percent for wet top-feed. Fargo's Lake Agassiz deposits are predominantly fine sands and silty sands, which fall within this envelope across most of Cass County. Sites with clay lenses thicker than 2 feet require hybrid approaches like stone columns instead.

How long does a vibrocompaction treatment take for a typical Fargo commercial lot?

For a 30,000-square-foot commercial pad with treatment to 25 feet depth on an 8-foot triangular grid, plan on 5 to 7 working days for the vibrator operation plus 2 days for post-treatment SPT or CPT verification. Fargo's seasonal groundwater — often within 8 feet of surface in spring — affects jetting efficiency, so spring projects may add a day.

What does vibrocompaction design cost in Fargo?

Design and quality control fees for a typical Fargo vibrocompaction project range from US$1,380 to US$5,500 depending on the treated area, depth, and number of verification borings required. Mobilization, vibrator rental, and backfill material are separate contractor costs.

How do you verify that the compaction met the design target?

We run SPT borings per ASTM D1586 or CPT soundings per ASTM D5778 at grid center points, typically 8 to 12 feet on center, and compare pre- and post-treatment N-values or tip resistances. A minimum relative density of 70 percent is our standard acceptance criterion, and we provide a signed report with all raw blow count logs and corrected N60 values.
